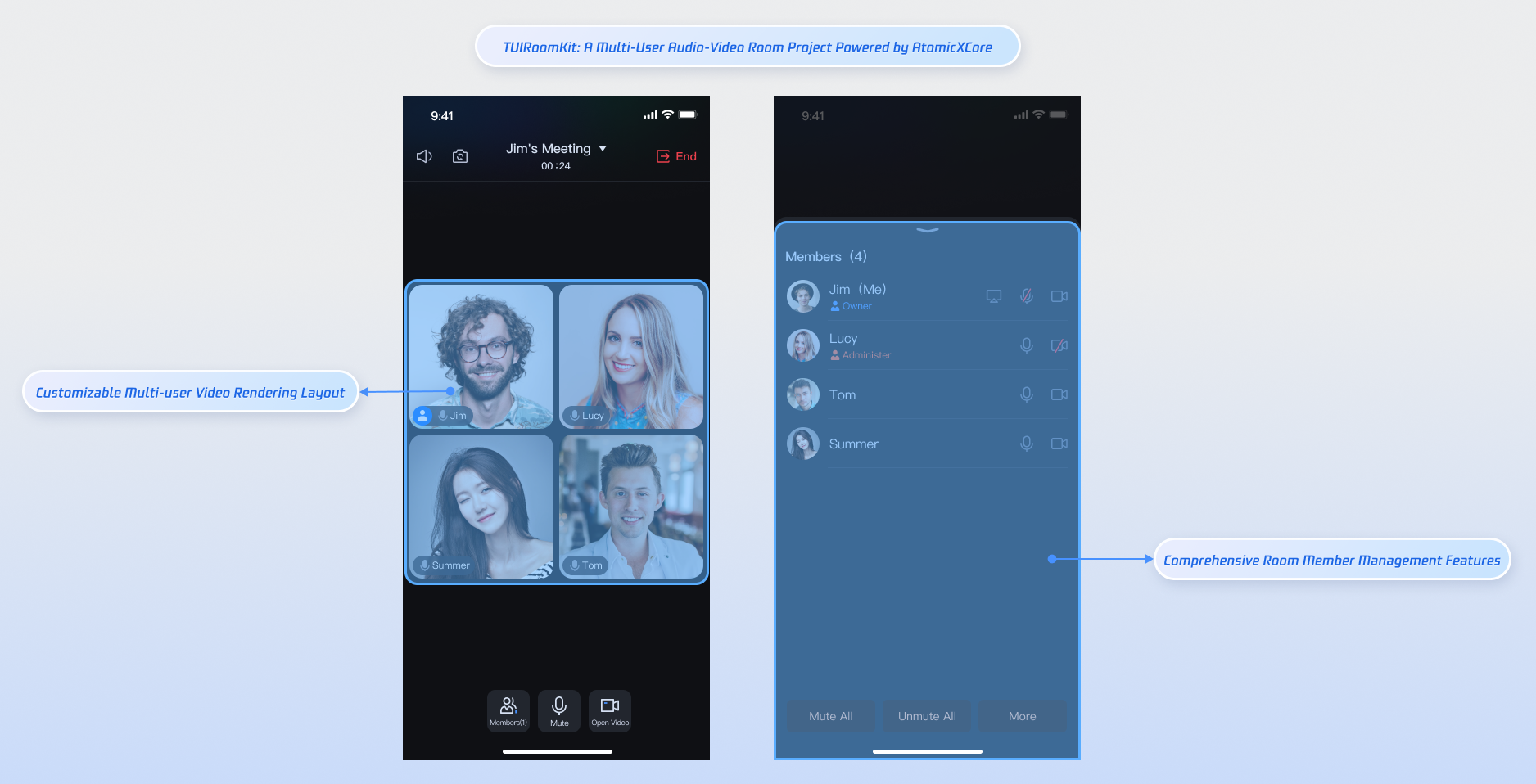

This document provides an integration guide for the core features of AtomicXCore, enabling developers to quickly build multi-party audio/video conference rooms. The SDK follows a pure API architecture, giving you full control over UI customization while letting you focus on business logic and user experience.




Key Features

AtomicXCore offers three essential modules for developing multi-party audio/video conference rooms:
RoomStore: Centralized room management, including scheduling, creating, joining rooms, and in-room calling.
RoomParticipantStore: Participant management within a room, covering admin settings, host transfer, removing participants, device control, and more.
RoomParticipantView: Video view for displaying participant streams within the room.

Prerequisites

Step 1: Activate the Service

See Activate the Service to obtain either the trial or paid version of the SDK.

Step 2: Environment Requirements

Android 5.0 (SDK API level 21) or higher
Gradle 8.0 or higher
Devices running Android 5.0 or above
JDK version 17, 18, or 19

Step 3: Integrate AtomicXCore SDK

Add the following dependencies to your build.gradle file, then sync your Gradle project.
dependencies {
implementation 'io.trtc.uikit:atomicx-core:3.6.1.66'
api "com.tencent.imsdk:imsdk-plus:8.7.7201"
}

Step 4: Implement Login Logic

Call LoginStore.shared.login in your project to authenticate. This step is required before using any feature of AtomicXCore.
Important:
We recommend calling LoginStore.shared.login only after your own user account login succeeds, to ensure clear and consistent login flow.
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.login.LoginStore
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import android.util.Log

class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)

LoginStore.shared.login(
this, // context
1400000001, // Replace with your project's sdkAppID
"test_001", // Replace with your project's userID
"xxxxxxxxxxx", // Replace with your project's userSig
object : CompletionHandler {
override fun onSuccess() {
// Login succeeded
Log.d("Login", "login success");
}

override fun onFailure(code: Int, desc: String) {
// Login failed
Log.e("Login", "login failed, code: $code, error: $desc");
}
}
)
}
}
Login API Parameter Description:
Parameter
Type
Description
sdkAppID
Int32
userID
String
Unique user identifier. Use only English letters, numbers, hyphens, and underscores. Avoid using simple IDs like 1 or 123 to prevent multi-device login conflicts.
userSig
String
Authentication ticket for Tencent Cloud.
For development: Use GenerateTestUserSig.genTestSig or the UserSig Assistant Tool for a temporary UserSig.
For production: Always generate UserSig server-side to prevent secret key leaks. See Calculating UserSig on the Server.
For more details, see How to Calculate and Use UserSig.

Building a Basic Multi-User Room

Step 1: Host Creates and Joins a Room

Follow these steps to quickly set up a multi-party room.



Tip:
For a full implementation of host room creation and joining logic, see TUIRoomKit, specifically RoomMainActivity.kt and RoomMainView.kt.

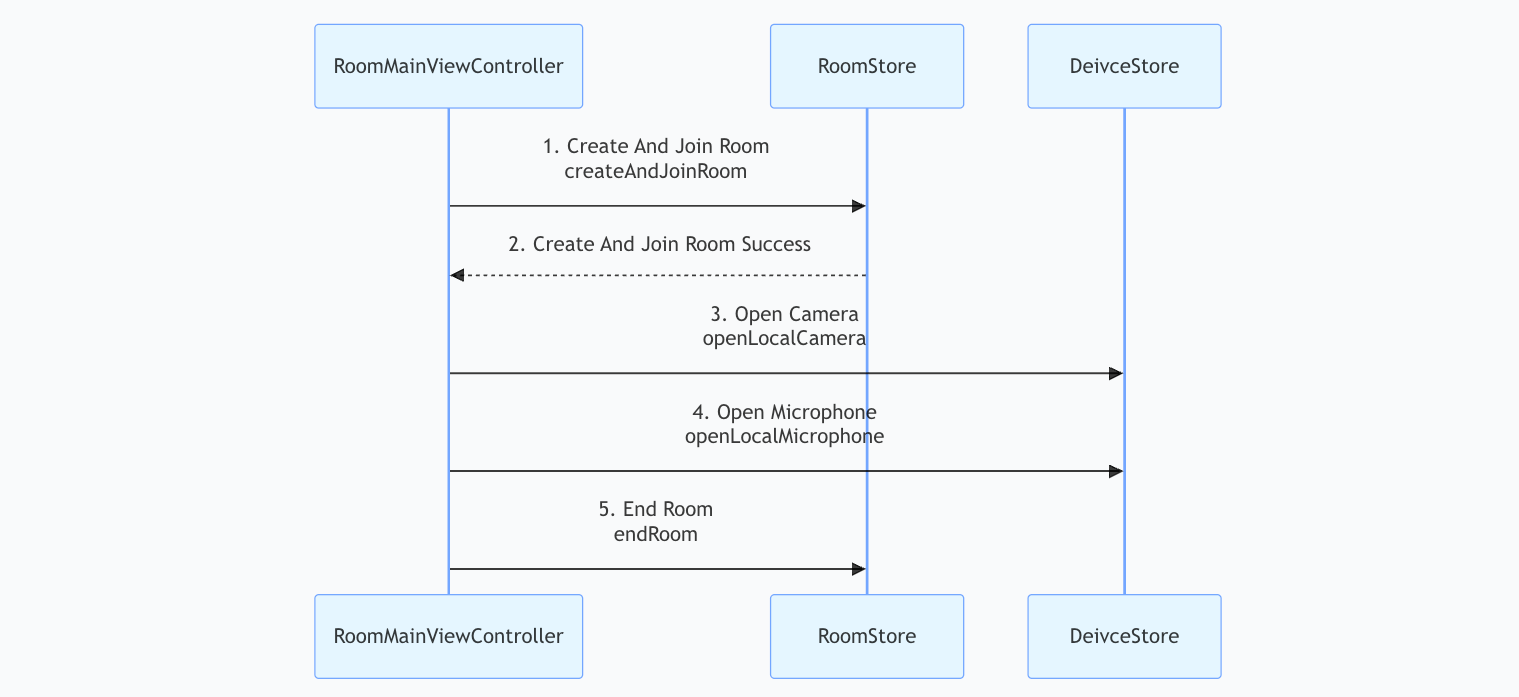

1. Creating and Joining a Room

Implementation Steps:
1.1 Configure Room Initialization Parameters: Use CreateRoomOptions to set the room name and password.
1.2 Preset Room Permissions: Define permissions for all members, such as muting, disabling cameras, etc.
1.3 Create and Join Room: Call RoomStore.createAndJoinRoom to perform the combined operation.
Sample Code:
import android.os.Bundle
import android.util.Log
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import io.trtc.tuikit.atomicxcore.api.room.CreateRoomOptions
import io.trtc.tuikit.atomicxcore.api.room.RoomStore
import io.trtc.tuikit.atomicxcore.api.room.RoomType

class RoomMainActivity : AppCompatActivity() {
private val roomID = "test_room_001"
private val roomType = RoomType.STANDARD

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
createAndJoinRoom()
}

private fun createAndJoinRoom() {
// 1. Configure room initialization parameters
val options = CreateRoomOptions()
options.roomName = "My Discussion" // Room display name
options.password = "" // Room entry password (leave blank if not needed)

// 2. Preset room permissions for all members (commonly used for formal meetings)
options.isAllCameraDisabled = false
options.isAllMessageDisabled = false
options.isAllMicrophoneDisabled = false
options.isAllScreenShareDisabled = false

// 3. Create and join room
// If the room does not exist, it is created and joined automatically
RoomStore.shared().createAndJoinRoom(roomID, roomType, options, object : CompletionHandler {
override fun onSuccess() {
// Room created and joined successfully. You can now subscribe to room status or open local camera/microphone.
Log.d("Room", "Room created and joined successfully")
}

override fun onFailure(code: Int, desc: String) {
// Room creation/join failed (possible permission, network, or parameter errors)
Log.e("Room", "Failed to create and join room [Error code: $code]: $desc")
}
})
}
}
createAndJoinRoom API Parameter Details:
Parameter Name
Type
Required
Description
roomID
String
Yes
Unique room identifier.
Length: 0-48 bytes.
Use only numbers, English letters (case-sensitive), underscores (_), hyphens (-). Avoid spaces and Chinese characters.
roomType
RoomType
Yes
Room type:
STANDARD: Standard room (default).
WEBINAR: Large seminar room.
Use STANDARD for most multi-party conferences.
options
CreateRoomOptions
Yes
Room creation configuration object.
For usage details, see CreateRoomOptions struct documentation.
completion
CompletionHandler
No
Callback for room creation/join result. Returns error code and message on failure.

CreateRoomOptions Struct Details:

Parameter Name
Type
Required
Description
roomName
String
No
Room name (optional, defaults to empty).
Length: 0-60 bytes.
Supports English, Chinese, numbers, special characters.
password
String
No
Room password (empty string means no password).
Length: 0-32 bytes.
Recommended: 4-8 digit numbers for easy mobile input. If set, users must enter password to join. Avoid storing sensitive info in plaintext.
isAllMicrophoneDisabled
Boolean
No
Disable microphones for all members:
True: disabled.
False: allowed (default).
isAllCameraDisabled
Boolean
No
Disable cameras for all:
True: disabled.
False: allowed (default).
isAllScreenShareDisabled
Boolean
No
Disable screen sharing for all:
True: disabled.
False: allowed (default).
isAllMessageDisabled
Boolean
No
Mute all chat messages:
True: disabled.
False: allowed (default).

2. Opening Camera and Microphone

After entering the room, activate the local camera and microphone by calling openLocalCamera and openLocalMicrophone from DeviceStore.
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.device.DeviceStore

class RoomMainActivity : AppCompatActivity() {

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
openDevices()
}

private fun openDevices() {
// Open front camera
DeviceStore.shared().openLocalCamera(true, completion = null)
// Open microphone
DeviceStore.shared().openLocalMicrophone(completion = null)
}
}
Note:
On Android 6.0 or later, you must dynamically request permissions before opening devices. See the FAQ for details on dynamic permission requests.
openLocalCamera API Parameter Details:
Parameter Name
Type
Required
Description
isFront
Boolean
Yes
Enable the front camera.
true: Front camera.
false: Rear camera.
completion
CompletionHandler
No
Callback for camera open result. Returns error code and message if failed.

3. End a Room

To end the room, call endRoom from RoomStore. All participants are notified when the room ends.
import android.os.Bundle
import android.util.Log
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import io.trtc.tuikit.atomicxcore.api.room.RoomStore

class RoomMainActivity : AppCompatActivity() {

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
endRoom()
}

private fun endRoom() {
// Permanently end the current room. Usually only the host can perform this action.
// All members are removed and audio/video capture is stopped.
RoomStore.shared().endRoom(object : CompletionHandler {
override fun onSuccess() {
Log.d("Room", "Room ended successfully")
}

override fun onFailure(code: Int, desc: String) {
Log.e("Room", "Failed to end room [Error code: $code]: $desc")
}
})
}
}

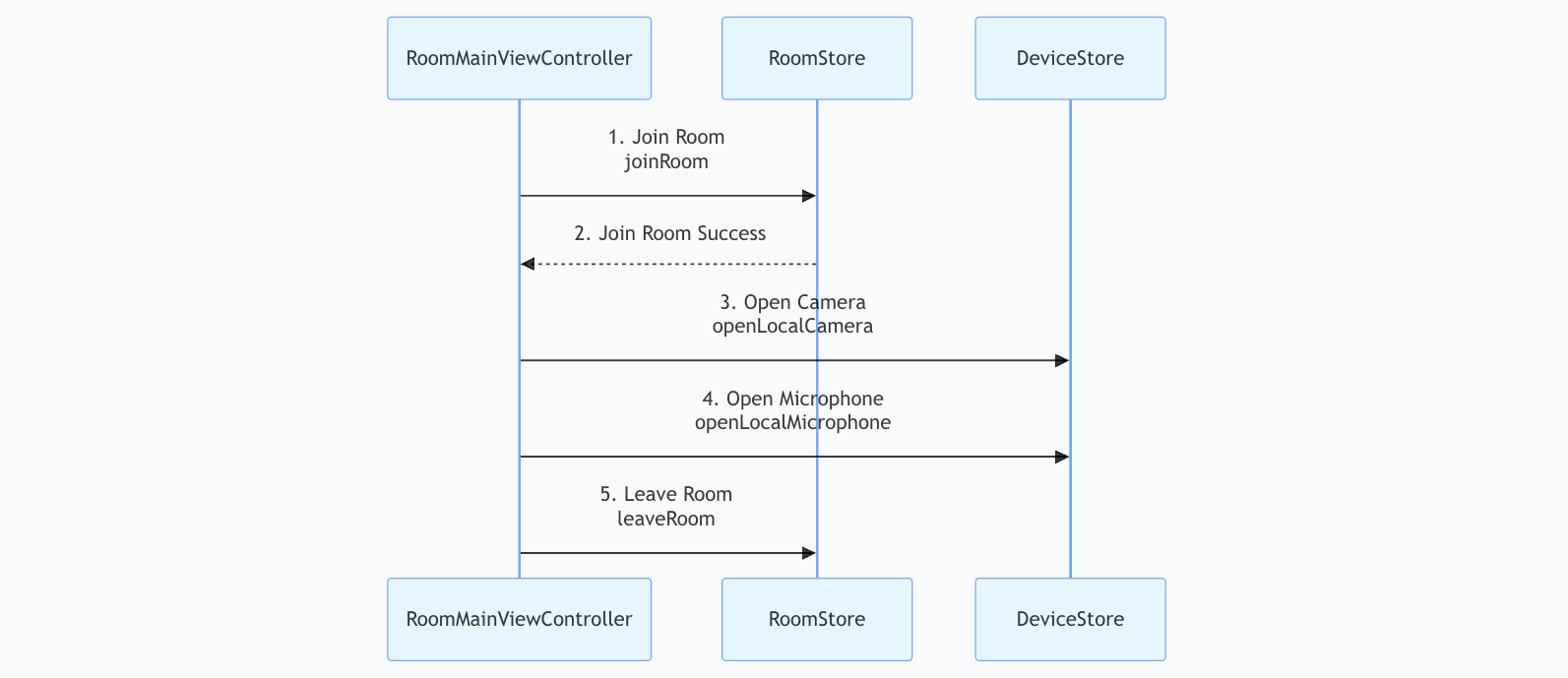

Step 2: Participant Joins Room

Participants can join a room in just a few steps to interact with others in real-time audio/video.




1. Join a Room

Call joinRoom from RoomStore to enter a room. Other users will receive a participant join notification.
import android.os.Bundle
import android.util.Log
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import io.trtc.tuikit.atomicxcore.api.room.RoomStore
import io.trtc.tuikit.atomicxcore.api.room.RoomType

class RoomMainActivity : AppCompatActivity() {
private val roomID = "test_room_001"
private val roomType = RoomType.STANDARD

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
joinRoom()
}

private fun joinRoom() {
// Prepare join parameters
val targetRoomID = this.roomID
val roomPassword = "" // If not set, use empty string or null

// Join an existing room. This checks room existence, ban status, and password.
RoomStore.shared().joinRoom(targetRoomID, roomType, roomPassword, object : CompletionHandler {
override fun onSuccess() {
Log.d("Room", "Joined room successfully")
}

override fun onFailure(code: Int, desc: String) {
Log.e("Room", "Failed to join room [Error code: $code]: $desc")
}
})
}
}
joinRoom API Parameter Details:
Parameter Name
Type
Required
Description
roomID
String
Yes
Unique room identifier.
Length: 0-48 bytes.
Use only numbers, English letters (case-sensitive), underscores (_), hyphens (-). Avoid spaces and Chinese characters.
roomType
RoomType
Yes
Room type:
STANDARD: Standard room (default).
WEBINAR: Large seminar room.
Use STANDARD for multi-party conferences.
password
String
No
Room password (empty string means no password).
Length: 0-32 bytes.
Recommended: 4-8 digit numbers for easy input. If set, users must enter the password. Avoid storing sensitive info in plaintext.
completion
CompletionHandler
No
Callback for join result. Returns error code and message if failed.

2. Open Camera and Microphone

For code samples, see the Open Camera and Microphone section above.

3. Leave the Room

To leave the room, call leaveRoom from RoomStore. Other participants will be notified when someone leaves.
import android.os.Bundle
import android.util.Log
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import io.trtc.tuikit.atomicxcore.api.room.RoomStore

class RoomMainActivity : AppCompatActivity() {

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
leaveRoom()
}

private fun leaveRoom() {
// leaveRoom is for regular members or the host to leave the room.
// Unlike endRoom, calling leaveRoom as host only removes you; the room remains.
RoomStore.shared().leaveRoom(object : CompletionHandler {
override fun onSuccess() {
Log.d("Room", "Left room successfully")
}

override fun onFailure(code: Int, desc: String) {
Log.e("Room", "Failed to leave room [Error code: $code]: $desc")
}
})
}
}

Step 3: Bind Video Views

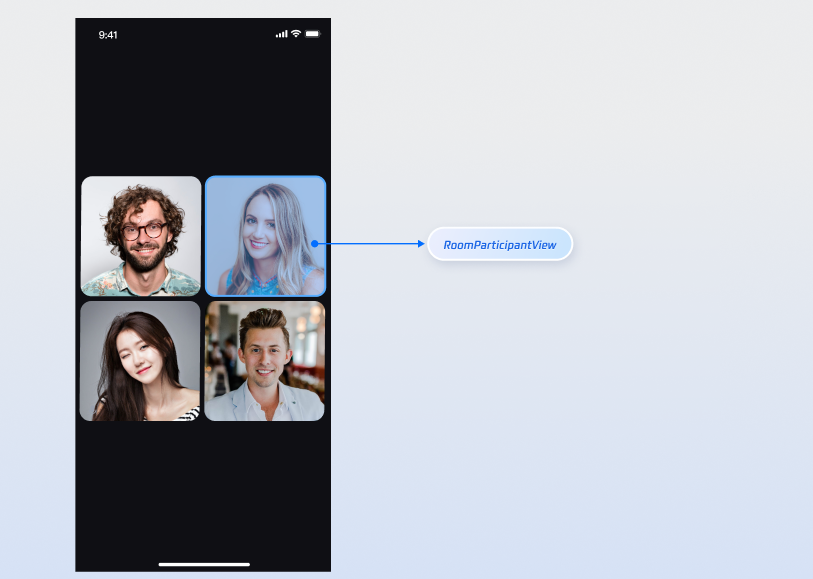

The RoomParticipantView component in AtomicXCore SDK provides a complete solution for video rendering. It supports real-time display of both local camera feeds and remote participant streams, and is easy to integrate.



Tip:
RoomParticipantView is the primary view for rendering participant video streams. For more flexible layouts, see TUIRoomKit, especially RoomMainView.kt.

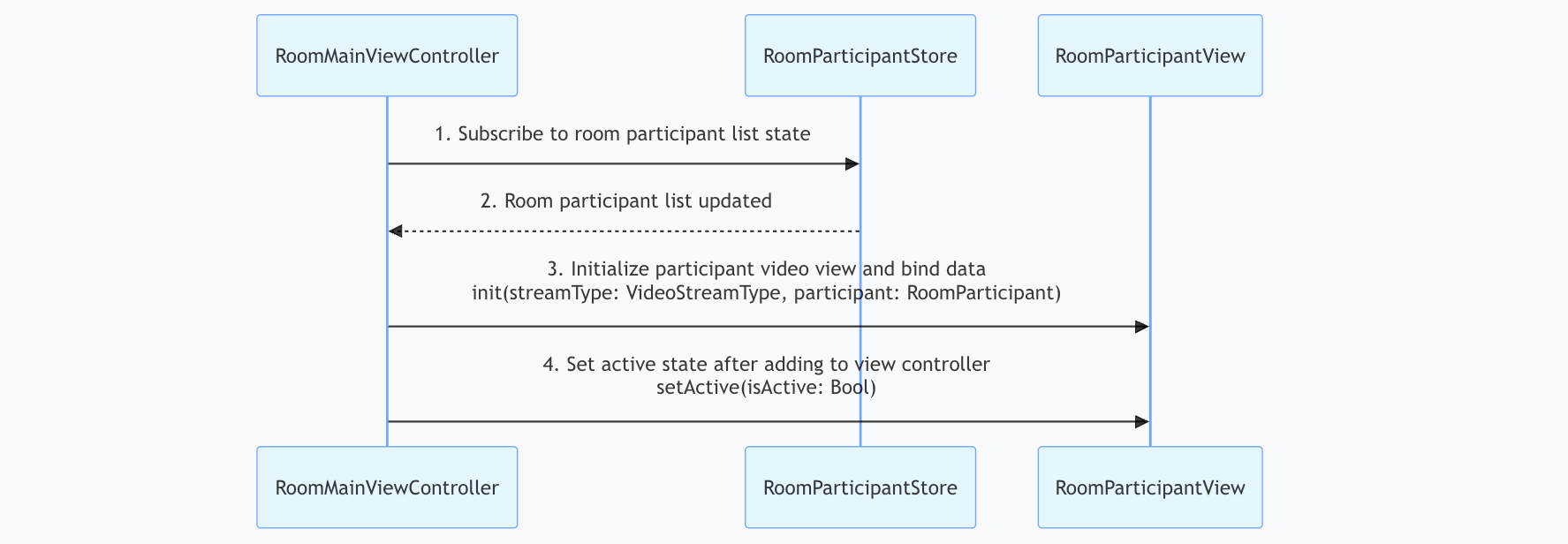

Implementation Steps:
1. Subscribe to Participant Data: Listen to RoomParticipantStore.state.participantList for participant state changes.
2. Automatic State Sync: The participant list updates reactively as room state changes.
3. Initialize Views: Create RoomParticipantView instances based on participant data and bind video logic.
4. Integrate with UI: Add views to your layout and activate rendering.
Sample Code:
import android.os.Bundle
import android.widget.FrameLayout
import androidx.appcompat.app.AppCompatActivity
import androidx.lifecycle.lifecycleScope
import io.trtc.tuikit.atomicxcore.api.room.RoomParticipant
import io.trtc.tuikit.atomicxcore.api.room.RoomParticipantStore
import io.trtc.tuikit.atomicxcore.api.view.RoomParticipantView
import io.trtc.tuikit.atomicxcore.api.view.VideoStreamType
import kotlinx.coroutines.launch

class RoomMainActivity : AppCompatActivity() {
private val roomID = "test_room_001"
private lateinit var container: FrameLayout
private val cellSize by lazy { resources.displayMetrics.widthPixels / 3 }
// RoomParticipantStore must be created for each room: RoomParticipantStore.create(roomID: String)
private val participantStore = RoomParticipantStore.create(roomID)

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
container = FrameLayout(this)
setContentView(container)
subscribeParticipantState()
participantStore.getParticipantList("", null)
}

private fun subscribeParticipantState() {
lifecycleScope.launch {
participantStore.state.participantList.collect { participants ->
updateParticipantView(participants)
}
}
}

private fun updateParticipantView(list: List<RoomParticipant>) {
container.removeAllViews()
list.take(9).forEachIndexed { index, participant ->
val view = RoomParticipantView(this@RoomMainActivity).apply {
init(VideoStreamType.CAMERA, participant)
}
val params = FrameLayout.LayoutParams(cellSize, cellSize).apply {
leftMargin = (index % 3) * cellSize
topMargin = (index / 3) * cellSize
}
view.setActive(true)
container.addView(view, params)
}
}
}
RoomParticipantView init() API Parameter Details:
Parameter Name
Type
Required
Description
streamType
VideoStreamType
Yes
Video stream type:
CAMERA: Camera stream.
SCREEN: Screen sharing stream.
participant
RoomParticipant
Yes
Real-time participant object, includes identity, status, device permissions.

RoomParticipant Struct Details:

Parameter Name
Type
Required
Description
userID
String
Yes
Unique user identifier.
userName
String
No
User nickname.
avatarURL
String
No
URL of user's avatar.
nameCard
String
No
User's name card/remark.
Length: 0-32 bytes.
Supports English, Chinese, numbers, special characters.
role
ParticipantRole
No
Role in room:
OWNER: Host.
ADMIN: Admin.
GENERAL_USER: Regular user (default)
roomStatus
RoomParticipantStatus
No
Business status:
SCHEDULED: Scheduled (default).
IN_CALLING: Calling.
CALL_TIMEOUT: Timeout.
CALL_REJECTED: Rejected.
IN_ROOM: In room .
microphoneStatus
DeviceStatus
No
Microphone status:
OFF: Off (default).
ON: On.
cameraStatus
DeviceStatus
No
Camera status:
OFF: Off (default).
ON: On.
screenShareStatus
DeviceStatus
No
Screen sharing status:
OFF: Off (default).
ON: On.
isMessageDisabled
Boolean
No
Muted status:
True: disabled.
False: enabled (default).
metaData
MutableMap
No
Business custom extension data, synchronized with participant state.
Limit: 0-60 bytes. Supports only JSON string.

Step 4: Listen to Room Events

Subscribe to room events by calling RoomStore.addRoomListener. Implement the RoomListener interface to handle events.
import android.os.Bundle
import android.util.Log
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.room.RoomInfo
import io.trtc.tuikit.atomicxcore.api.room.RoomListener
import io.trtc.tuikit.atomicxcore.api.room.RoomStore

class RoomMainActivity : AppCompatActivity() {

// RoomListener receives room lifecycle events: calling, dissolution, scheduling reminders, etc.
private val roomListener = object : RoomListener() {
override fun onRoomEnded(roomInfo: RoomInfo) {
Log.d("Room", "Current room has ended")
}
// ... handle other RoomListener events ...
}

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
subscribeRoomEvents()
}

private fun subscribeRoomEvents() {
RoomStore.shared().addRoomListener(roomListener)
}

override fun onDestroy() {
super.onDestroy()
// Remove listener to prevent memory leaks
RoomStore.shared().removeRoomListener(roomListener)
}
}

Demo effects

After completing the above setup, you will have a multi-party video rendering room without UI interaction.
Demo effect




Enhance Multi-Party Room Features

To support additional requirements, AtomicXCore SDK provides the following features to enrich conference room scenarios.
Multi-User Room Feature
Feature Description
Implementation Guide
Update Room Information
Host can update room details, such as name and password.
In-Meeting Calling
Host or admin can invite users who are not in the room to join.
Room Scheduling
Schedule rooms in advance, set start/end times, and add participants.
In-Room Member Management
Host can manage participants: assign admins, remove users, control individual audio/video.

API Documentation

Store/Component
Feature Description
API Documentation
RoomStore
Complete room lifecycle management: create & join, join, leave, end room, update/get room info, scheduling, invite members, listen for room events
RoomParticipantStore
Participant management: assign admin, transfer host, get participant list, remove from room, control devices, apply for device access
RoomParticipantView
Single participant video view: bind/update participant info, update stream type, set active state, etc.

FAQ

How do I resolve the allowBackup compilation error after integrating the code?


Cause: Conflicts occur when multiple modules define the allowBackup attribute in their AndroidManifest.xml.

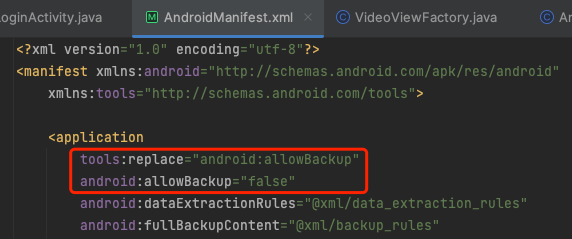

Solution: Remove the allowBackup attribute from your project's AndroidManifest.xml or set it to false to disable backup/restore. Add tools:replace="android:allowBackup" to the application node to enforce your own setting. See the example below:


Why does RoomParticipantView show no video even though it's bound to participant info and stream type?

Check setActive: Make sure RoomParticipantView is visible and you called RoomParticipantView.setActive(true).
Check RoomParticipant: Verify that the cameraStatus of the bound RoomParticipant is ON.
Check Network: Ensure the device has a stable network connection.

Why can't the remote side see video after calling DeviceStore APIs to open camera/microphone?

Check if you requested system camera and microphone permissions
On Android 6.0 and above, dynamically request permissions as follows:
1. Declare permissions in AndroidManifest.xml.
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
2. Request permissions at runtime.
import android.Manifest
import android.content.pm.PackageManager
import android.os.Bundle
import android.util.Log
import androidx.appcompat.app.AppCompatActivity
import androidx.core.app.ActivityCompat
import androidx.core.content.ContextCompat
import io.trtc.tuikit.atomicxcore.api.device.DeviceStore

class RoomMainActivity : AppCompatActivity() {

private val PERMISSION_REQUEST_CODE = 1001

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
checkAndRequestPermissions()
}

private fun checkAndRequestPermissions() {
val permissions = arrayOf(
Manifest.permission.CAMERA,
Manifest.permission.RECORD_AUDIO
)

val permissionsToRequest = permissions.filter {
ContextCompat.checkSelfPermission(this, it) != PackageManager.PERMISSION_GRANTED
}

if (permissionsToRequest.isNotEmpty()) {
ActivityCompat.requestPermissions(
this,
permissionsToRequest.toTypedArray(),
PERMISSION_REQUEST_CODE
)
} else {
// Permissions granted, can open devices
openDevices()
}
}

override fun onRequestPermissionsResult(
requestCode: Int,
permissions: Array<out String>,
grantResults: IntArray
) {
super.onRequestPermissionsResult(requestCode, permissions, grantResults)
if (requestCode == PERMISSION_REQUEST_CODE) {
if (grantResults.all { it == PackageManager.PERMISSION_GRANTED }) {
// All permissions granted, call openDevices()
openDevices()
} else {
// Some permissions denied
Log.e("Permission", "Some permissions denied")
}
}
}

private fun openDevices() {
// Open front camera
DeviceStore.shared().openLocalCamera(isFront = true, completion = null)
// Open microphone
DeviceStore.shared().openLocalMicrophone(completion = null)
}

Why does audio/video capture stop after switching to background on Android 14+?

Android 14 and above require a foreground service with the proper service type to capture camera/microphone data in the background. Without this, capture will not work.
1. Declare FOREGROUND_SERVICE, FOREGROUND_SERVICE_CAMERA, and FOREGROUND_SERVICE_MICROPHONE permissions and service in AndroidManifest.xml.
<uses-permission android:name="android.permission.FOREGROUND_SERVICE" />
<uses-permission android:name="android.permission.FOREGROUND_SERVICE_CAMERA" />
<uses-permission android:name="android.permission.FOREGROUND_SERVICE_MICROPHONE" />

<service
android:name=".MediaCaptureService"
android:foregroundServiceType="camera|microphone" />
2. Start the foreground service after launching your interface.
import android.app.NotificationChannel
import android.app.NotificationManager
import android.app.Service
import android.content.Intent
import android.content.pm.ServiceInfo
import android.os.Bundle
import android.os.IBinder
import androidx.appcompat.app.AppCompatActivity
import androidx.core.app.NotificationCompat

class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
startForegroundService(Intent(this, MediaCaptureService::class.java))
}
}

class MediaCaptureService : Service() {
override fun onCreate() {
super.onCreate()
// Create notification channel
val channel = NotificationChannel("media", "Media Capture", NotificationManager.IMPORTANCE_LOW)
getSystemService(NotificationManager::class.java).createNotificationChannel(channel)

// Build notification
val notification = NotificationCompat.Builder(this, "media")
.setContentTitle("In Audio/Video Call")
.setSmallIcon(android.R.drawable.ic_menu_call)
.build()

// Start foreground service and specify camera/microphone type (required for Android 14+)
startForeground(1, notification,
ServiceInfo.FOREGROUND_SERVICE_TYPE_CAMERA or ServiceInfo.FOREGROUND_SERVICE_TYPE_MICROPHONE)
}

override fun onBind(intent: Intent?): IBinder? = null
}

Contact Us

If you have any questions or suggestions during integration or usage, please contact info_rtc@tencent.com to submit feedback.


Help and Support

Was this page helpful?

Help us improve! Rate your documentation experience in 5 mins.

Feedback
